TASN13M080B27.0R10

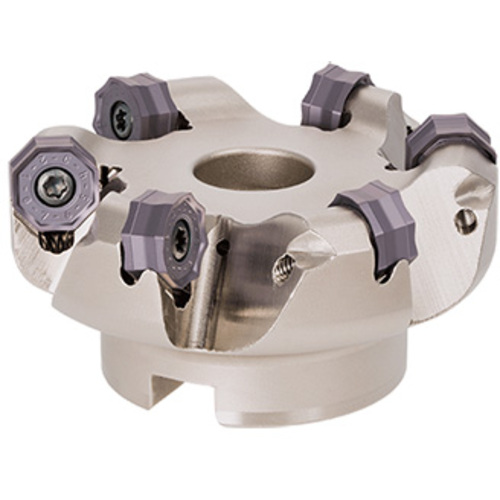

Indexable Face Mill; 94 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 6 mm LOC ; 10 Inserts
Price: Log in For Price

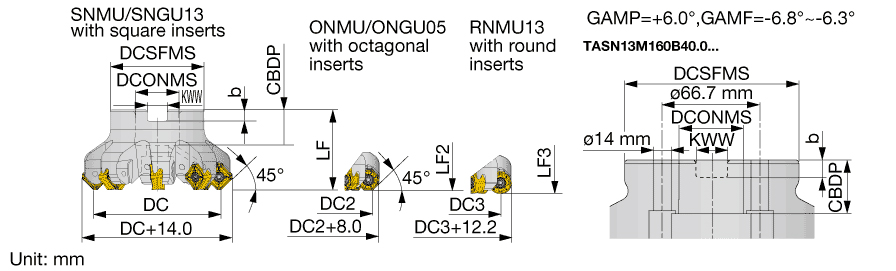

| Cutting Diameter (DC/DCX) | 94 mm | Master Insert Identification (MIID) | SNMU1307ANEN-MJ |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 94 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | 45 deg face milling cutters with double-sided square, octagon or radius inserts; Bore type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
2.818
